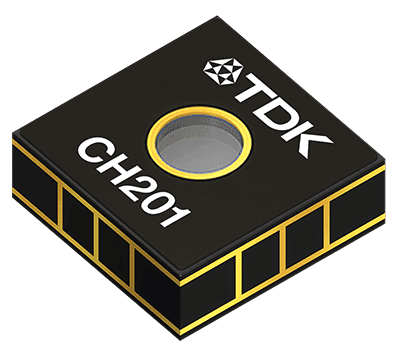

CH201
Fonctionnalités
- Detects objects of any color and optical transparency up to 5m
- Ultra-Low Power
- Works in Any Lighting Condition
- Customizable field of view (FoV) up to 180°
- Integrated 3.5 × 3.5 × 1.26 mm Package
- Low-power SoC firmware for ultrasonic processing a wide-range of usage cases
Key features
Presence detection
Ultra-low power and low latency Ultrasonic ToF sensors detect presence and minor motion under any lighting condition
Obstacle avoidance
Always-on battery powered smart locks utilize ultra-low power Ultrasonic ToF sensors to enable feature rich smart locks
Gesture control
Ultra-low power sensing
Presence detection
Ultra-low power and low latency Ultrasonic ToF sensors detect presence and minor motion under any lighting condition
Obstacle avoidance
Always-on battery powered smart locks utilize ultra-low power Ultrasonic ToF sensors to enable feature rich smart locks
Gesture control
Ultra-low power sensing
Product details
Product key details
| Operation | ||
Pulse-Echo | - | - |
| Package Size | ||
2.00 x 3.00 x 1.00 | ||
| Range | ||
Up to 5 | - | - |
| Voltage | ||
- | - | - |
| Current Consumption | ||
12.00 | - | - |
| Interface | ||
I2C | - | - |
Development hardware
EV_MOD_CH201-00-01
Ultrasonic ToF 45° FoV sensor module for rapid prototyping and integration into product enclosures
DK-CH201
Comprehensive development platform for CH201, with the ability to connect up to four additional CH201 modules.
